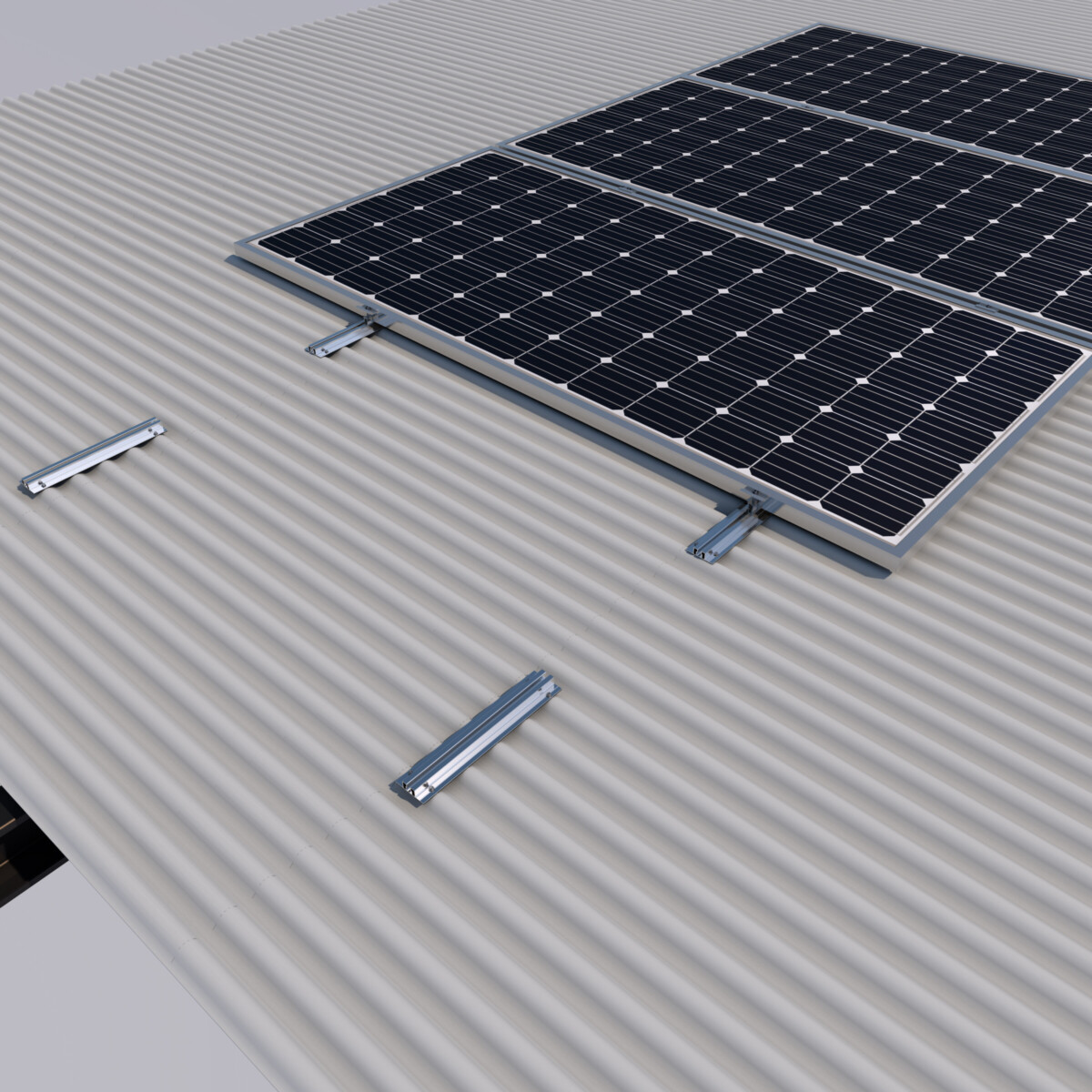

Coplanar for sheetmetal

05V-EU

KIT-EU system specifications

  • 05V-EU
    View more expand_more View less expand_less
  • Installation area
    Metal roofing
  • Types of roofs
    Ribbed sheeting, sandwich sheeting, corrugated sheeting, imitation tile sheeting.
  • Anchoring surface
    Directly on the sheet
    Minimum sheet thickness 0.63 mm
    Maximum distance between ribs 300 mm
  • Maximum panel size
    Fits all sizes
  • Panel thickness
    28 TO 40 mm
  • Kits available
    From 1 to 8 modules
  • Anchor screws
    S43 – Self-drilling screw with sealing washer
  • Materials
    Profiles: Aluminium EN AW 6005A.T6 (raw or anodised) Screws: Stainless steel A2-70 EPDM
  • Sealing gasket
    EPDM
  • Kit components
    S05-EU / S43-EU / S10-EU/ S11-EU / S13
  • Available formats
    Kit
