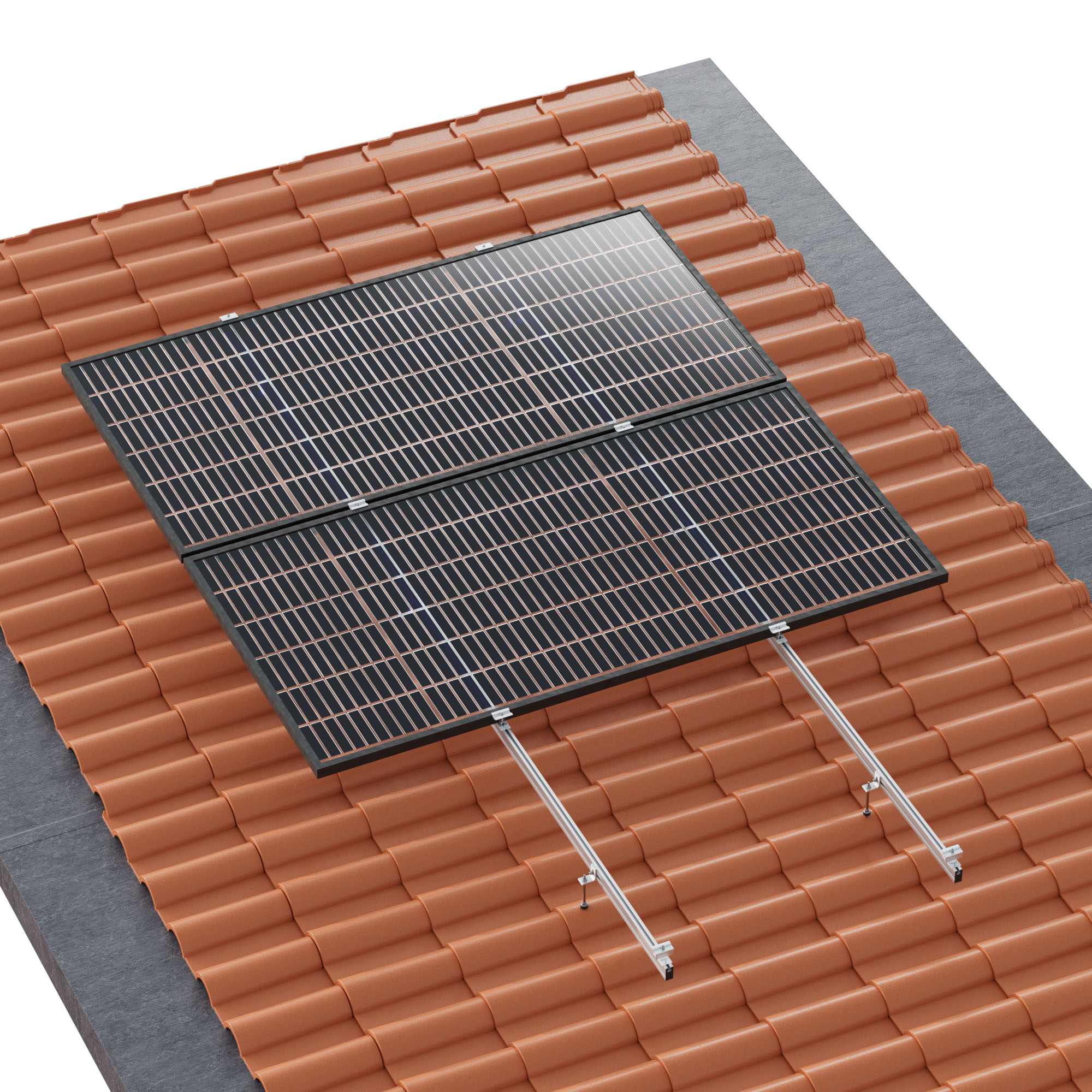

Tiled pitched roof

01V-300-PN-EN

Specifications

  • 01V-300-PN-EN
    View more expand_more View less expand_less
  • Installation area
    Tiled roof
  • Anchoring surface
    Concrete slab and wooden beam
  • Maximum panel size
    Kit: 2279×1150 mm |  Bulk: 2400×1350 mm
  • Panel thickness
    28 to 40 mm
  • Kits available
    1 to 4 modules

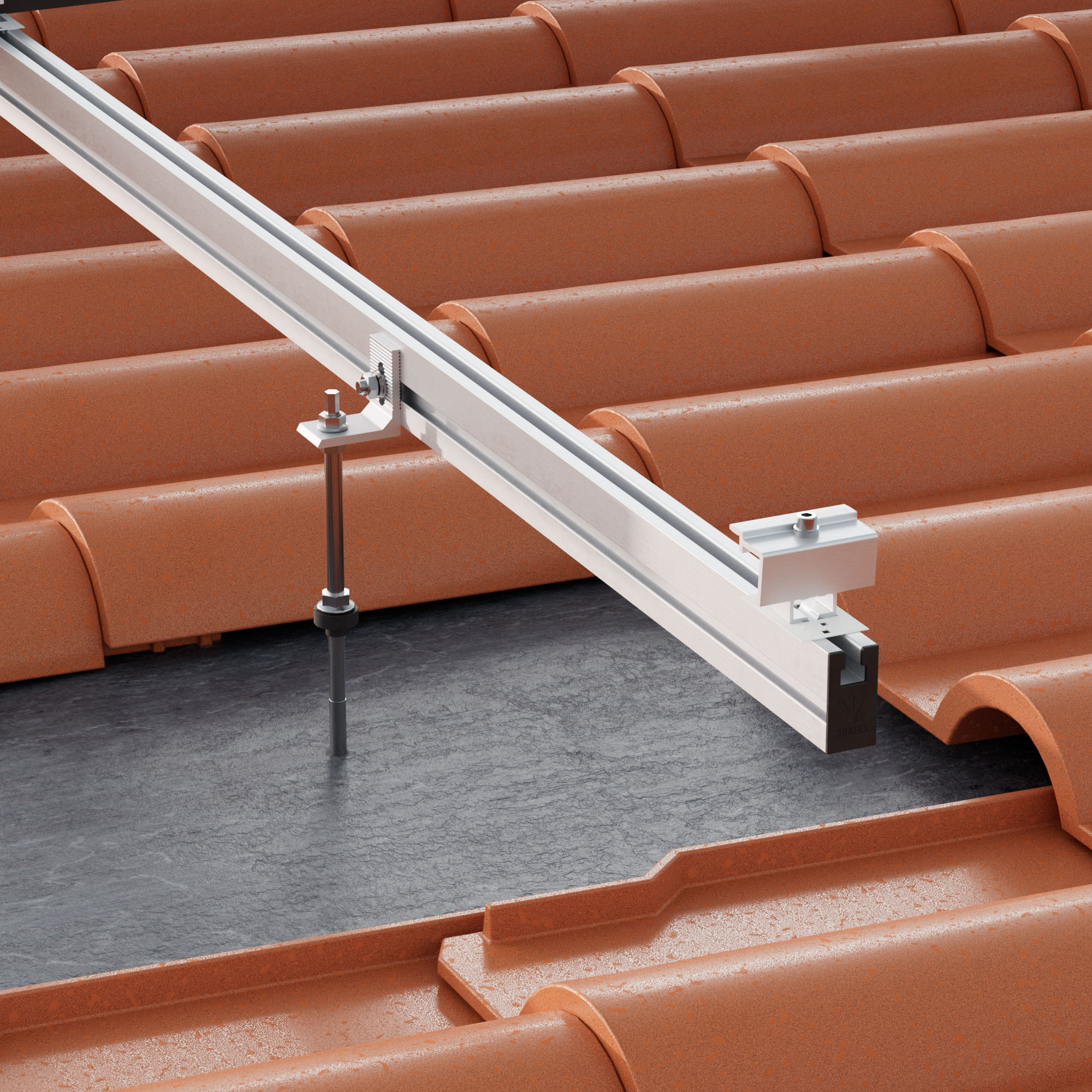

  • Anchor screws
    Double threaded self-drilling screw and EPDM sealing washer
  • Materials
    Profiles: EN AW 6005A.T6 aluminium (raw or anodised) | Screws: A2-70 stainless steel EPDM
  • Sealing gasket
    EPDM
  • Kit components
    S01-300-EN / G1-EN / TG1 / UG1-EN / S10-B-EN / S11-B-EN / S13
  • Available formats
    Kit
    SunferProject
  • Certificates
    CE Marking MCS Certificate
