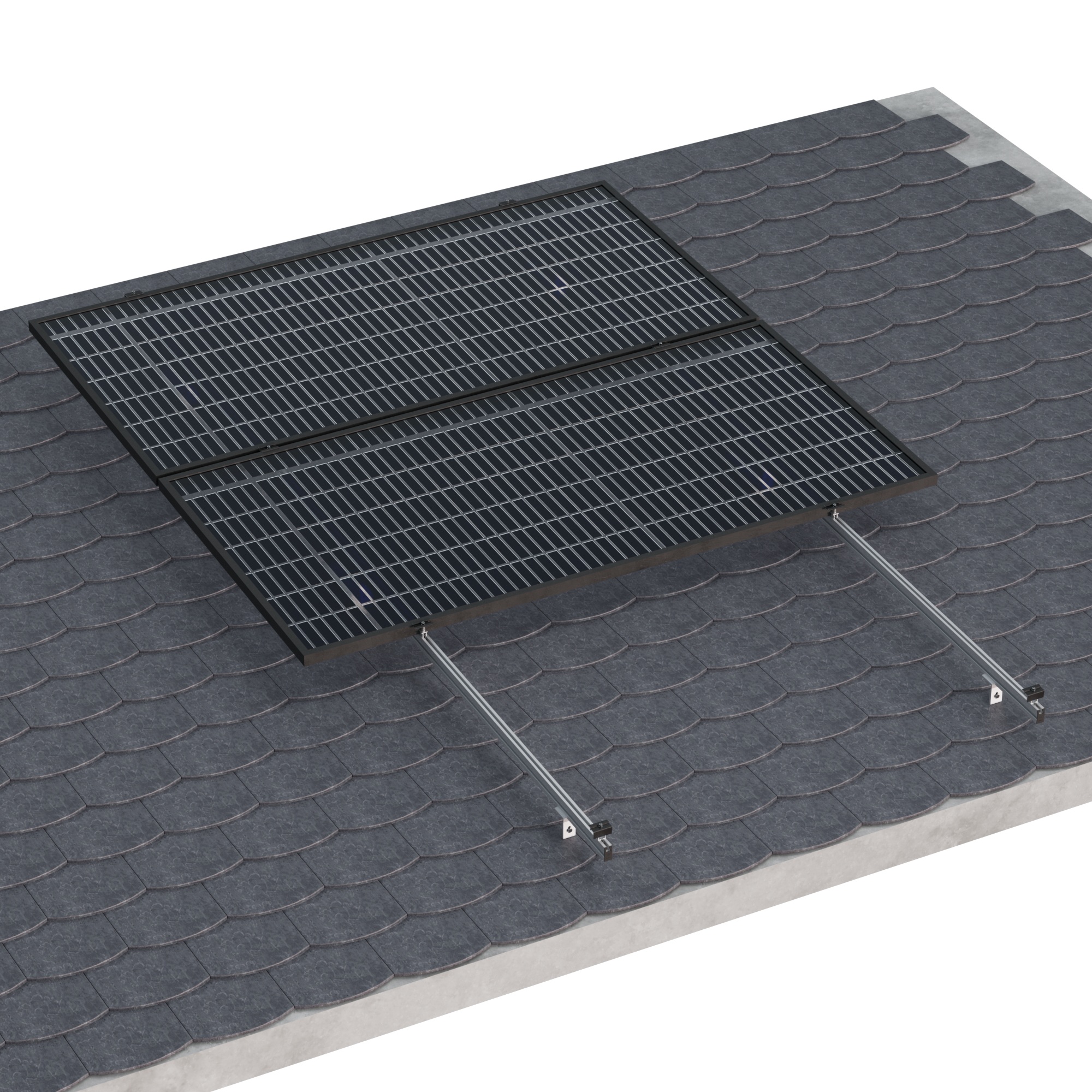

Tiled pitched roof

02.1V-PN-EN

Specifications

  • 02.1V-PN-EN
    View more expand_more View less expand_less
  • Installation area
    Tiled roof
  • Anchoring surface
    Concrete slab and wooden beam
  • Maximum panel size
    2279×1150 mm
  • Panel thickness
    28 to 40 mm
  • Kits available
    1 to 4 modules
  • Kit linking system
    S15B-EN
  • Anchor screws
    S52 – Wood screw Ø 6×70 mm
  • Materials
    Profiles: EN AW 6005A.T6 aluminium (raw or anodised) Screws: A2-70 stainless steel EPDM
  • Sealing gasket
    EPDM
  • Kit components
    S02.1-EN / G1-EN / TG1 / UG1-EN / S10B-EN / S11B-EN / S13
  • Available formats
    Kit
