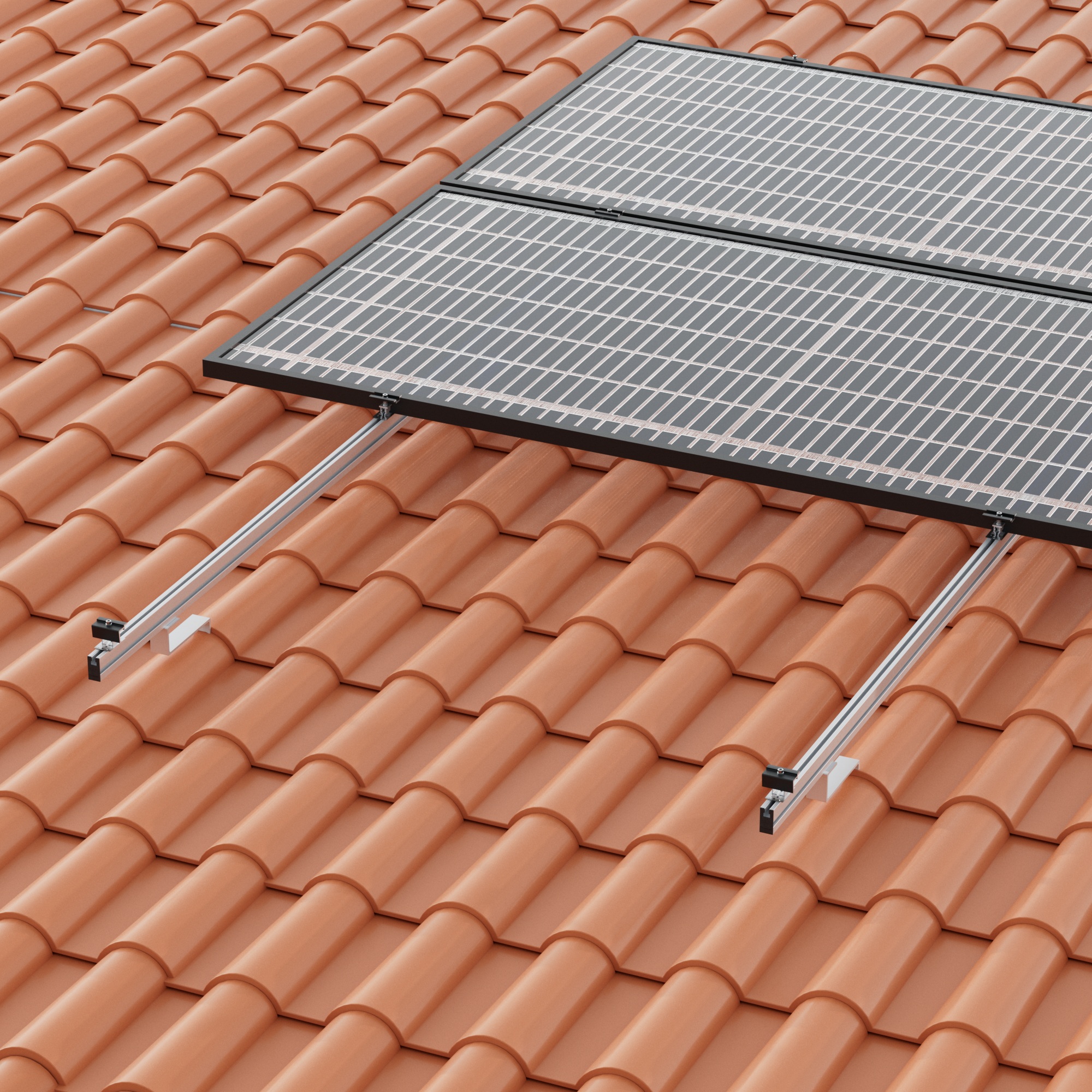

Tiled pitched roof

02.3V-PN-EN

Specifications

  • 02.3V-PN-EN
    View more expand_more View less expand_less
  • Installation area
    Tile roofs
  • Anchoring surface
    Concrete slab
  • Maximum panel size
    2279×1150 mm
  • Panel thickness
    28 to 40 mm
  • Kits available
    From 1 to 4 modules
  • Kit linking system
    S15B-EN
  • Anchor bolts
    Not included
  • Materials
    Profiles: Aluminium EN AW 6005A.T6 (raw or anodised) Screws: Stainless steel A2-70 EPDM
  • Gasketing
    S52
  • Kit components
    S02.3-EN / G1-EN / TG1 / UG1-EN / S10B-EN / S11B-EN / S13
  • Available formats
    Kit
