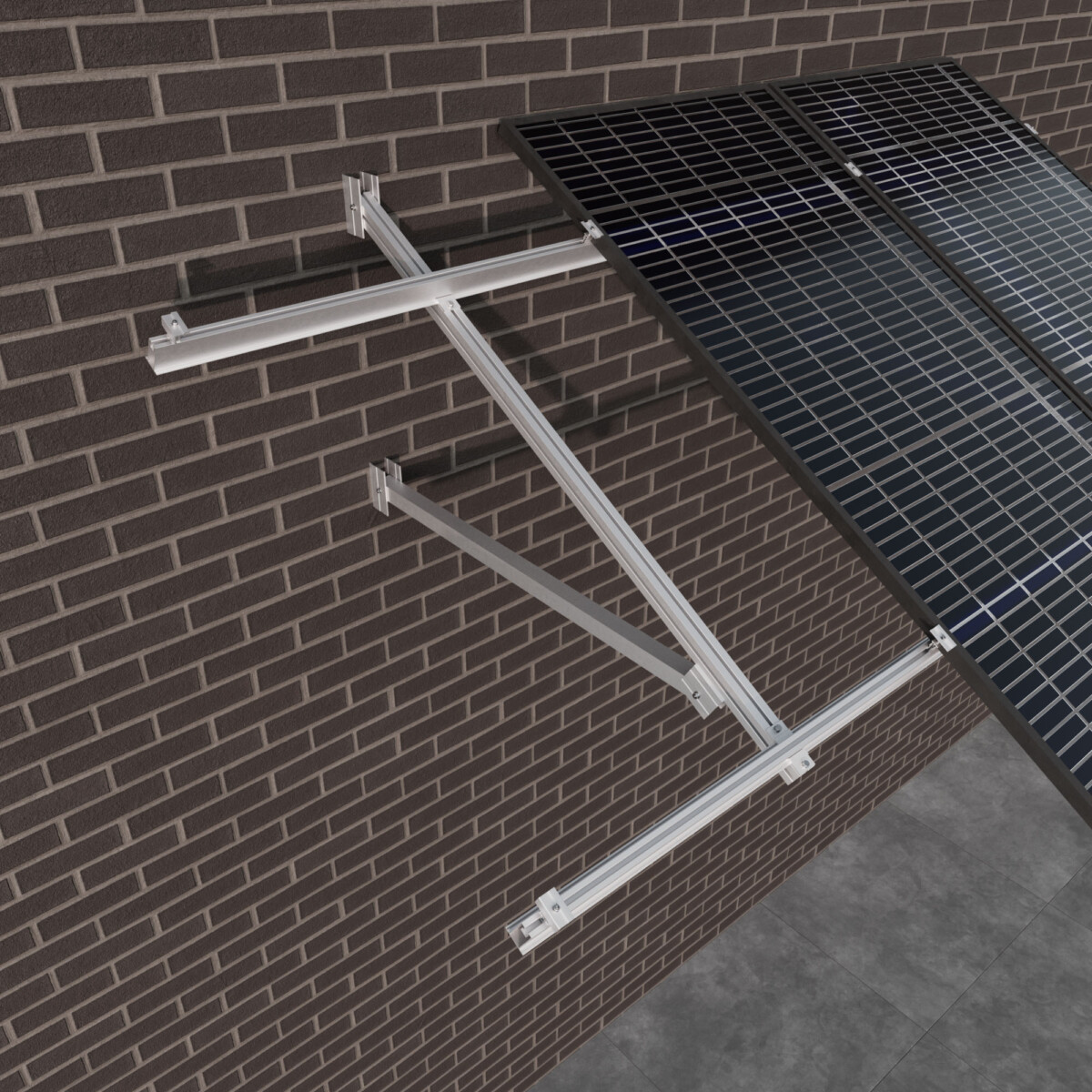

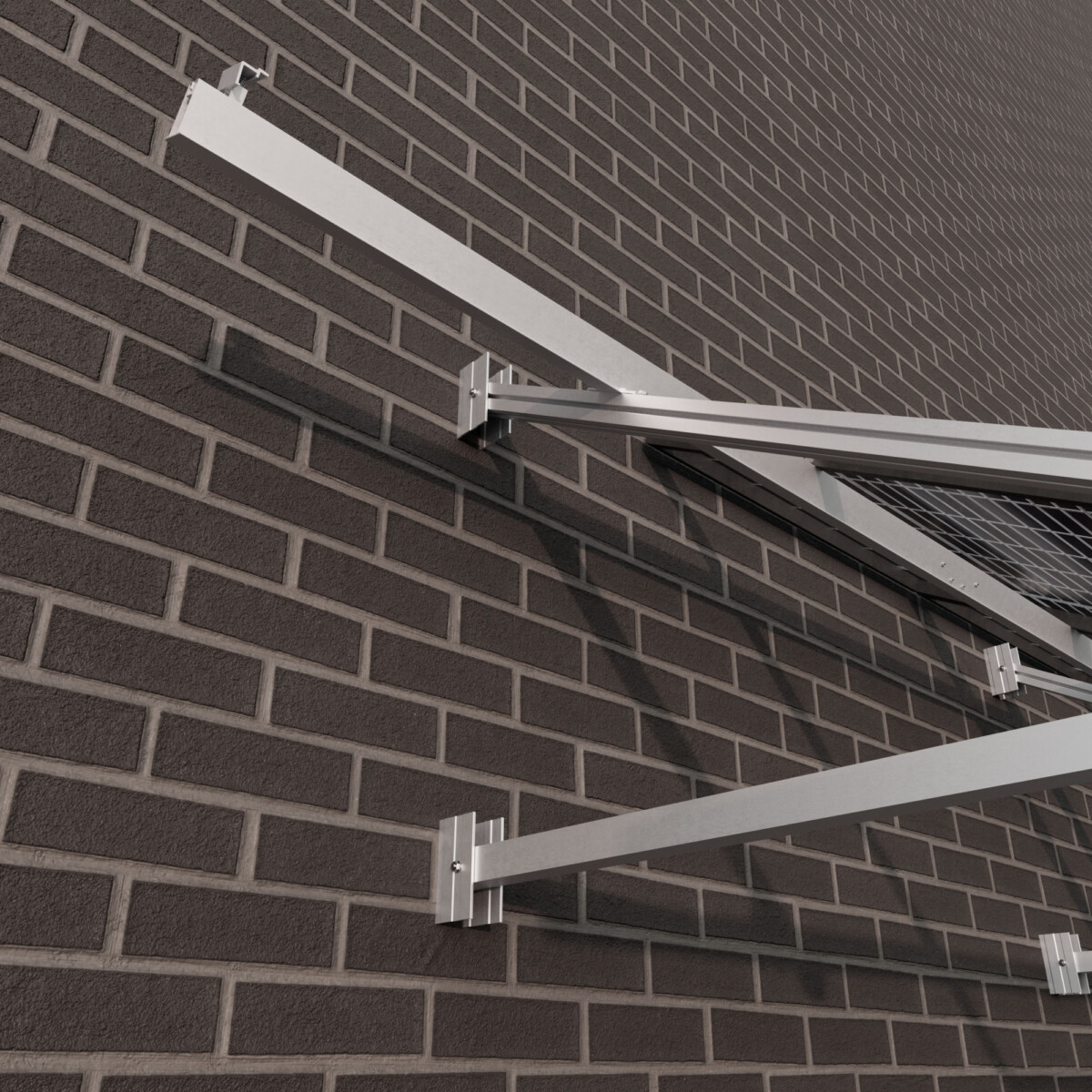

Facade supports

15V

Specifications

  • 15V
    View more expand_more View less expand_less
  • Installation area
    Facade
  • Anchoring surface
    Wall
  • Maximum panel size
    Kit: 2400×1150 mm
    Bulk: 2400×1350 mm
  • Panel thickness
    From 28 to 40 mm
  • Kits available
    From 1 – 3 modules
  • Inclination
    30º and 35º (in the same triangle)
  • Kit linking system
    S17
  • Anchor screws
    Not included
  • Materials
    Profiles: Aluminium EN AW 6005A.T6 (raw or anodised) Screws: Stainless steel A2-70
  • Kit components
    TR15V / G2 / UG2 / S10 / S11 / S13
  • Available formats
    Kit
  • Certifications
    CE marking
