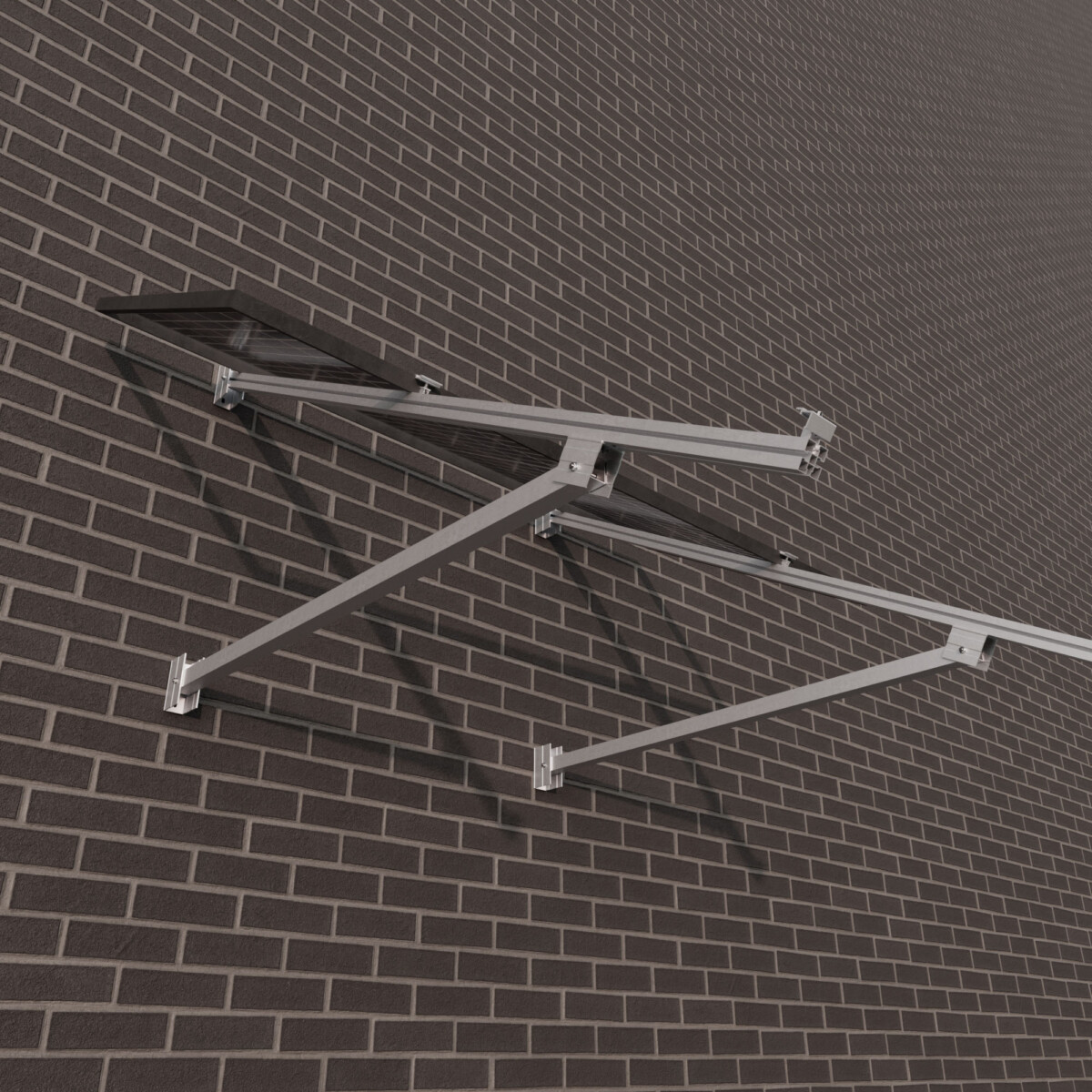

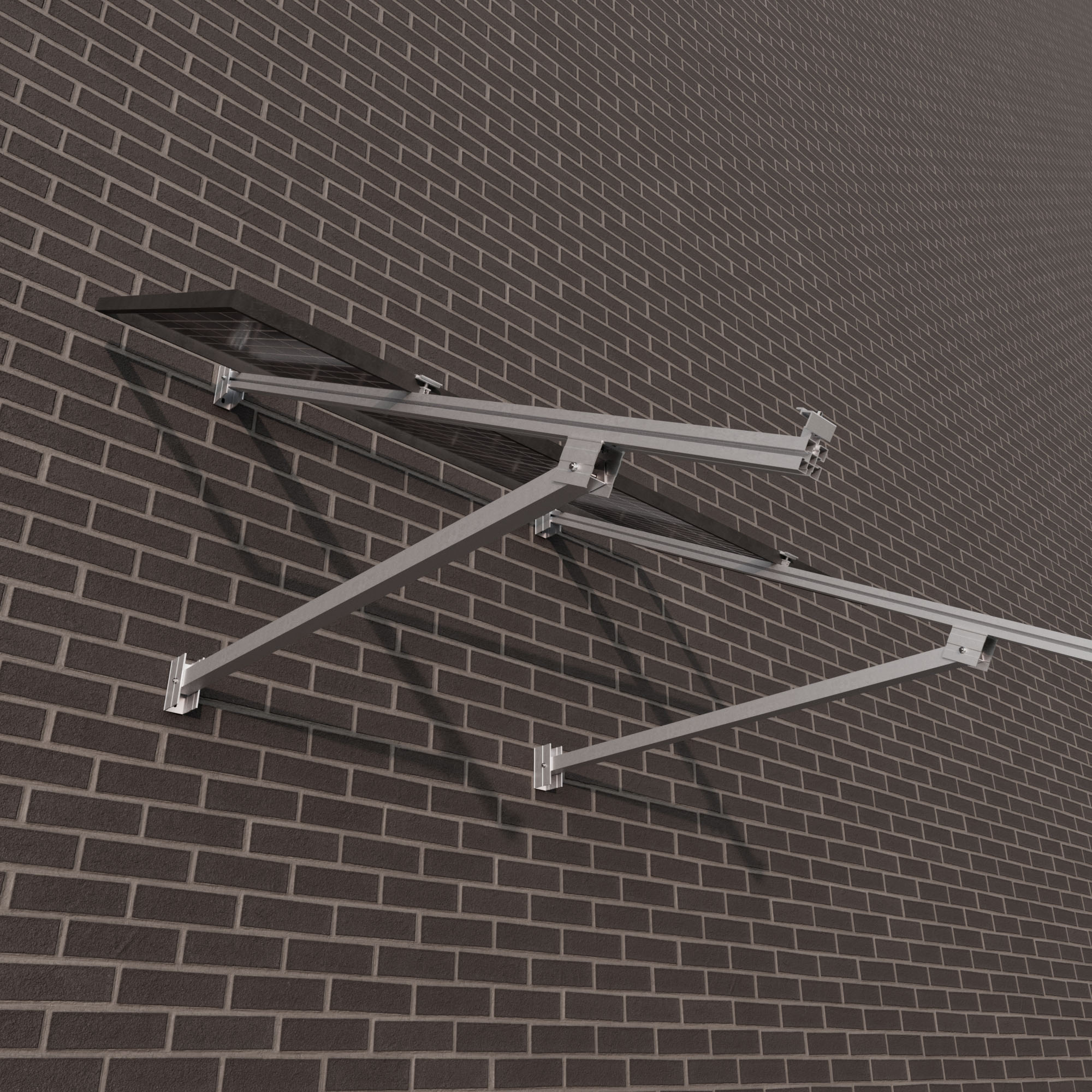

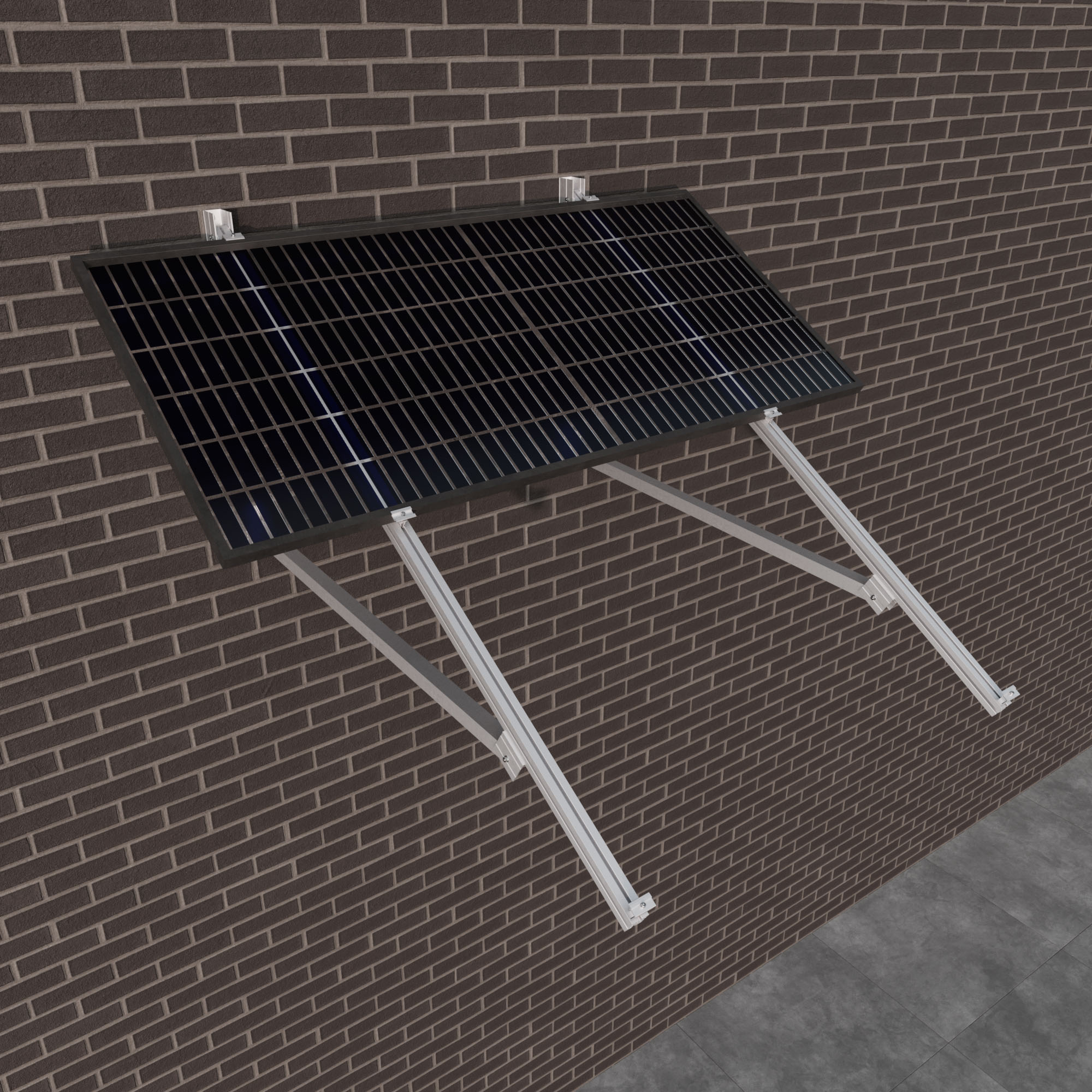

Wall supports

16H-EN

Specifications

  • 16H-EN
    View more expand_more View less expand_less
  • Installation area
    Facade

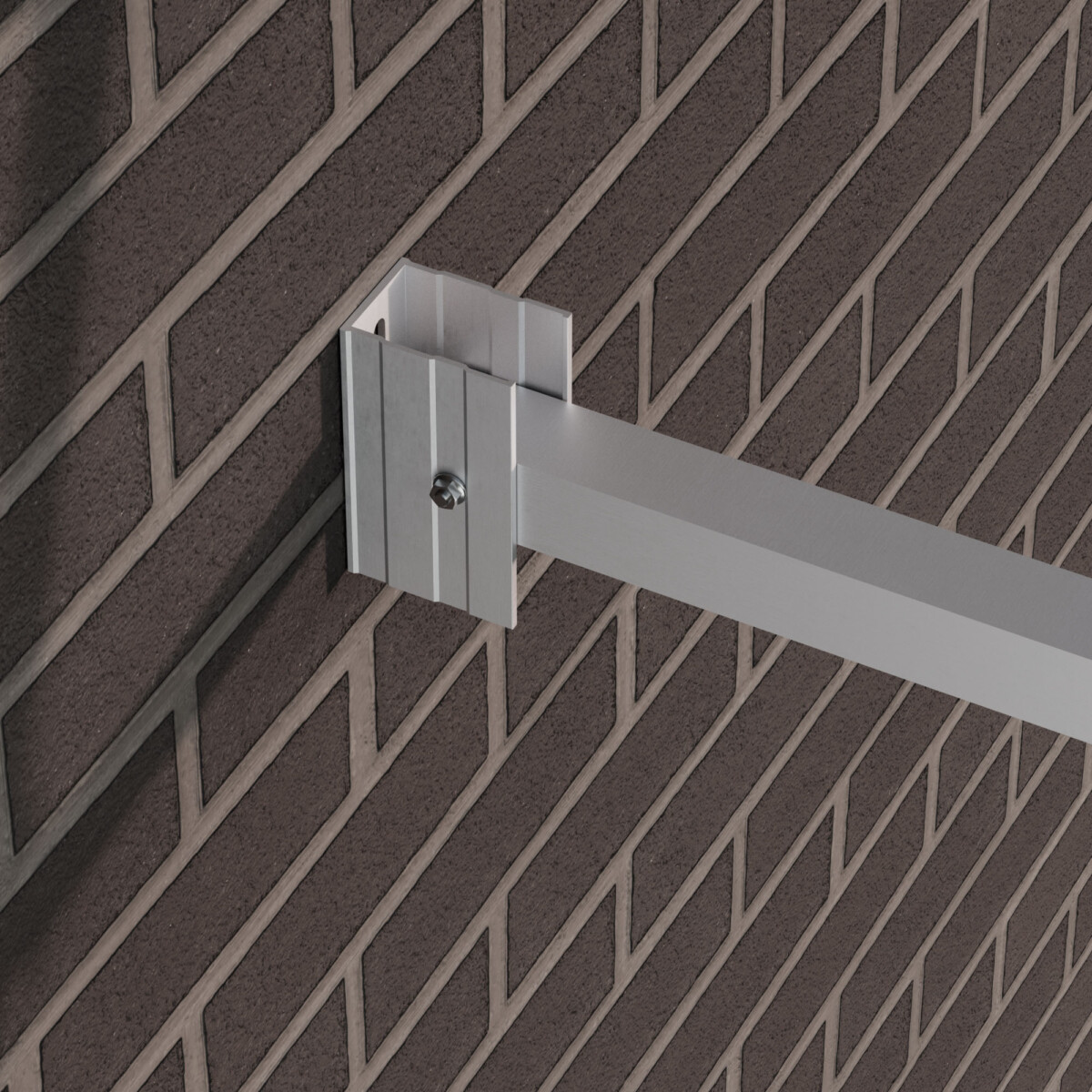

  • Anchoring surface
    Wall
  • Maximum panel size
    2279 x 1150 mm
  • Panel thickness
    From 28 to 40 mm
  • Kits available
    2 modules
  • Inclination
    30º and 35º (in the same triangle)
  • Anchor screws
    Not included
  • Materials
    Profiles: Aluminium EN AW 6005A.T6 (raw or anodised) / Screws: Stainless steel A2-70
  • Kit components
    Accessories: TR16H / G2  / UG2 / S10 / S11
  • Available formats
    Kit
  • Certifications
    CE Marking
