Inclined

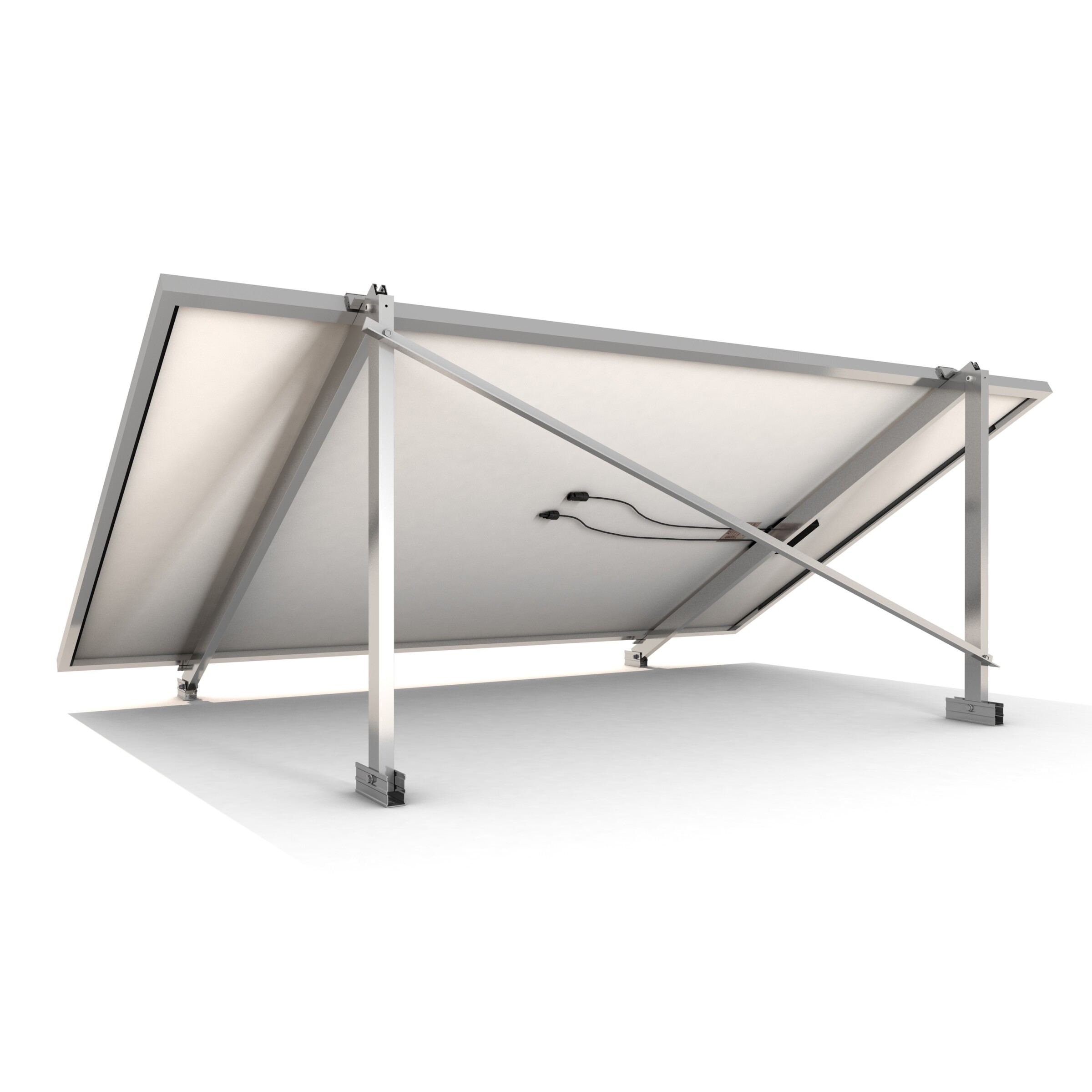

19H-EN

Specifications

  • 19H-EN / 19.1H-EN
  • Installation area
    Flat and metal roofs
  • Anchoring surface
    Concrete slab, metal purlins and substructure
  • Maximum panel size
    2279×1150 mm
  • Panel thickness
    From 28 to 40 mm
  • Kits available
    1-module
  • Tilt
    15º
    30º
  • Anchor screws
    No incluido
  • Materials
    Profiles: EN AW 6005A.T6 aluminium (raw or anodised) Screws: A2-70 stainless steel
  • Kit components
    TR19.1H-EN / S10-EN / S08-EN / S13
  • Certifications
    CE Certifications
