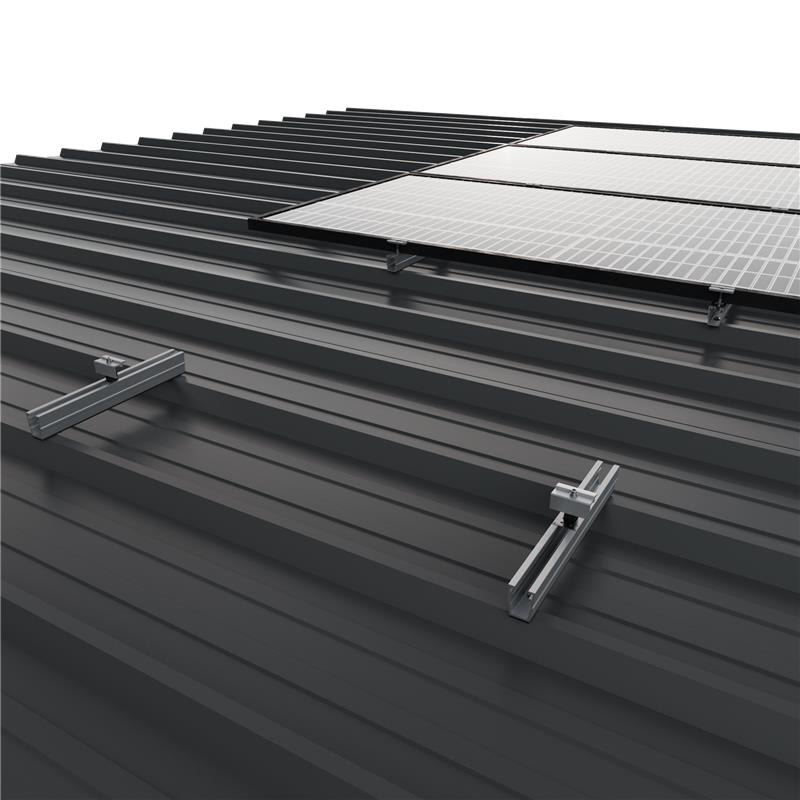

Sheet metal pitched roof

62V-BI-EN

Specifications

  • 62V-BI-EN
    View more expand_more View less expand_less
  • Installation area
    Sheet metal
  • Types of roofs
    Trapezoidal sheet – Sandwich panel of 5 ribs – Corrugated Sheet – Imitation Tile Sheet
  • Anchoring surface
    Sheet metal rib
  • Maximum panel size
    Kit: 2279×1150 mm | Bulk: 2279×1150 mm
  • Panel thickness
    From 28 to 40 mm
  • Kits available
    From 1 to 8 modules
  • Anchor screws
    S43 – Bimetallic self-drilling screw with sealing washer
  • Materials
    Profiles: Aluminium EN AW-6005A T6 (Raw or anodized) Screws: General: A2-70 Stainless steel | Anchor: A2 stainless steel with case-hardened steel tip
  • Gasketing
    EPDM
  • Kit components
    Accessories: S62-BI-EN | S10.3-EN | S11.3-EN | S13.3
  • Available formats
    Kit
    SunferProject
  • Certifications
    CE Marking
