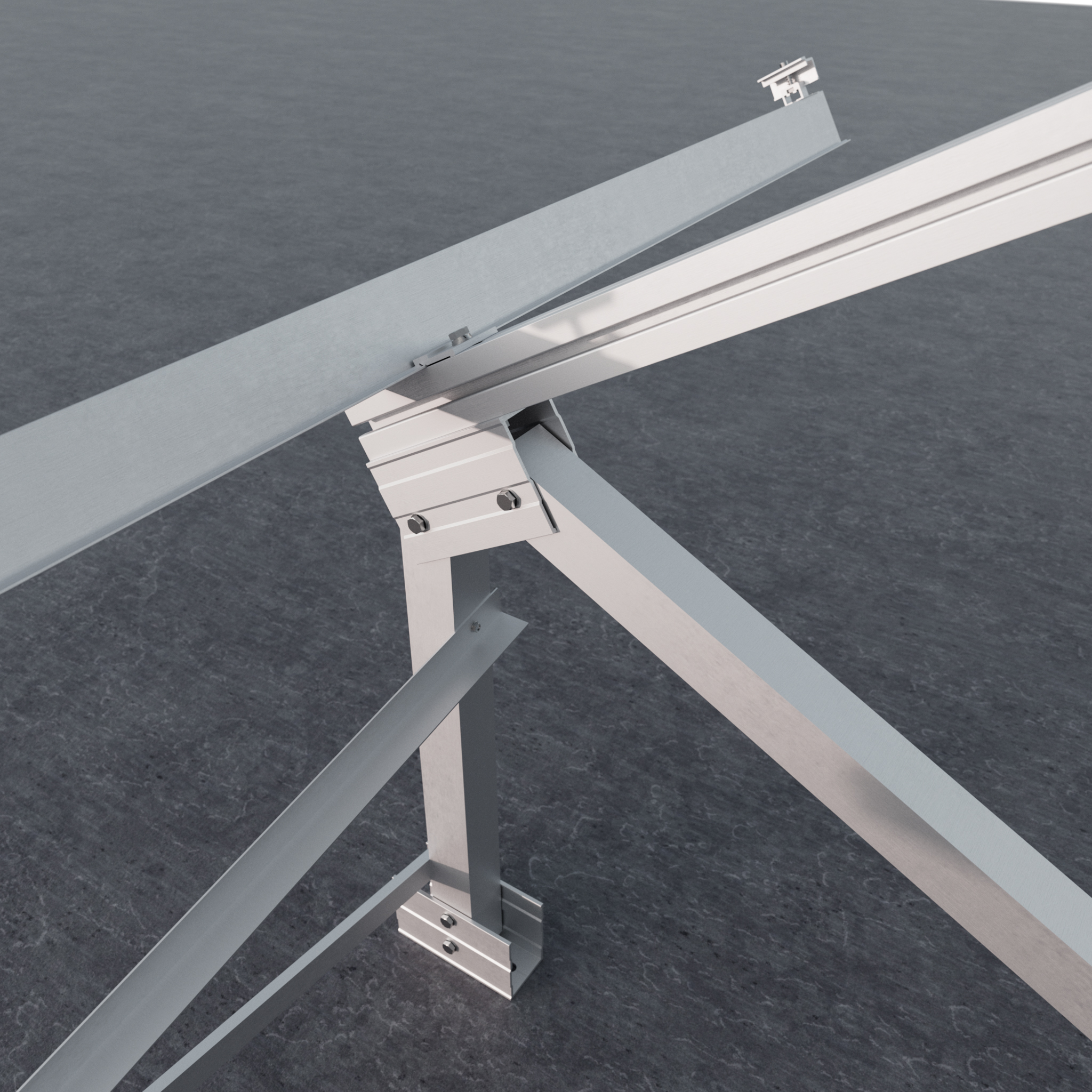

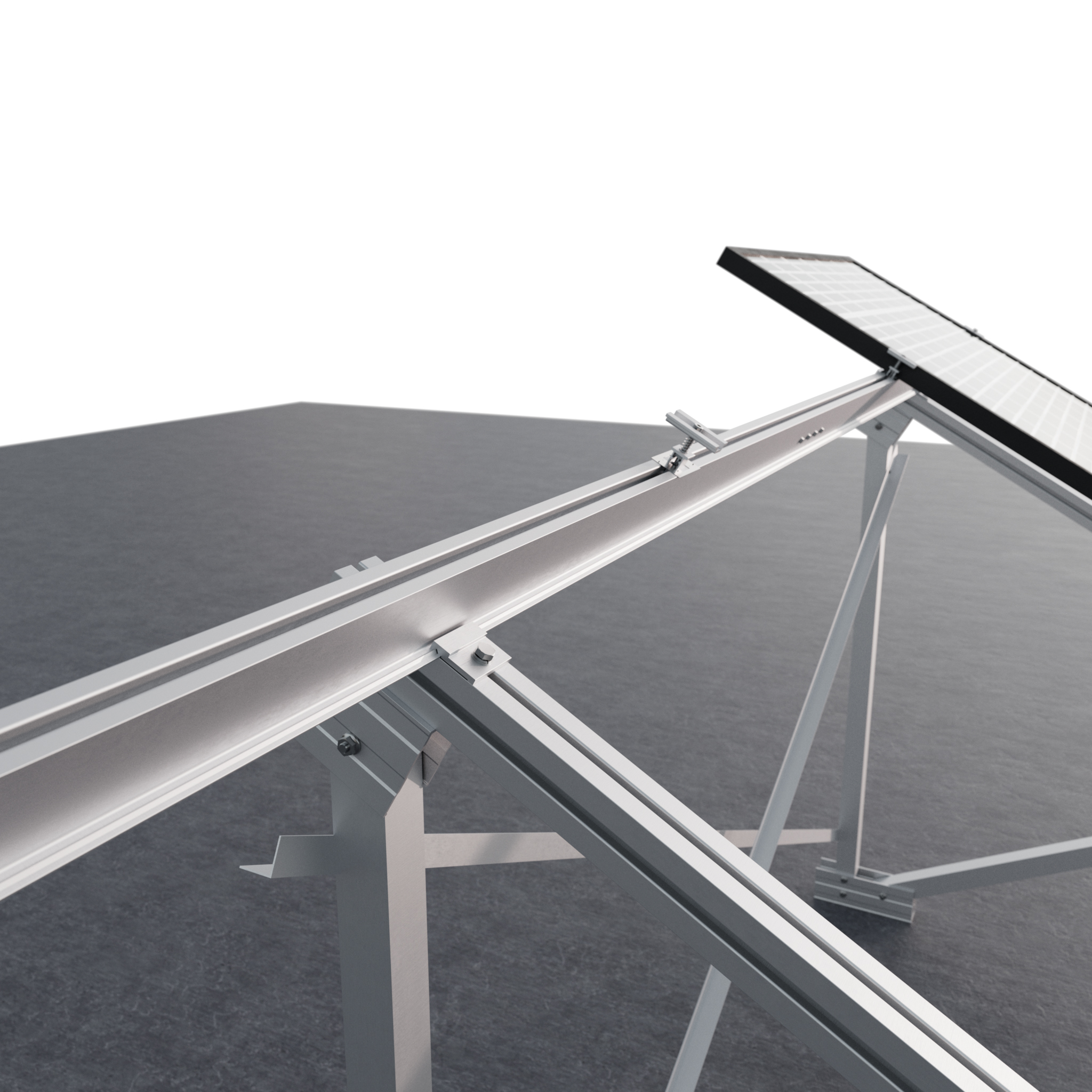

Ground supports

65V-EN

Specifications

  • 65V-EN
    View more expand_more View less expand_less
  • Installation area
    Land
  • Anchoring surface
    Concrete slab / Footing
  • Maximum panel size
    Kit: 2400×1150 mm
    Bulk: 2400×1350 mm
  • Panel thickness
    From 28 to 40 mm
  • Rows of modules
    1 vertical row
  • Kits available
    From 1 to 4 modules
  • Tilt
    30º
  • Kit linking system
    S17-EN
  • Anchor bolts
    Not included
  • Materials
    Profiles: Aluminium EN AW 6005A.T6 (raw or anodised) Screws: Stainless steel A2-70
  • Kit components
    TR65V-EN / G2-EN / UG2-EN / S10-EN / S11-EN / A09-EN / S13
  • Available formats
    Kit
  • Certificates
    CE Marking
